Carbogatto LR
Fully Electric Lightweight
Monocoque Cafe Racer
Beyond Boundaries: advanced engineering, timeless design for standout individuals.
Crafted in the UAE
Global Minds, 15 Countries, One Vision
For the best experience rotate
your phone
Explore our design philosophy.
Each frame is handcrafted, from layering of carbon
fiber to machining and finally painting

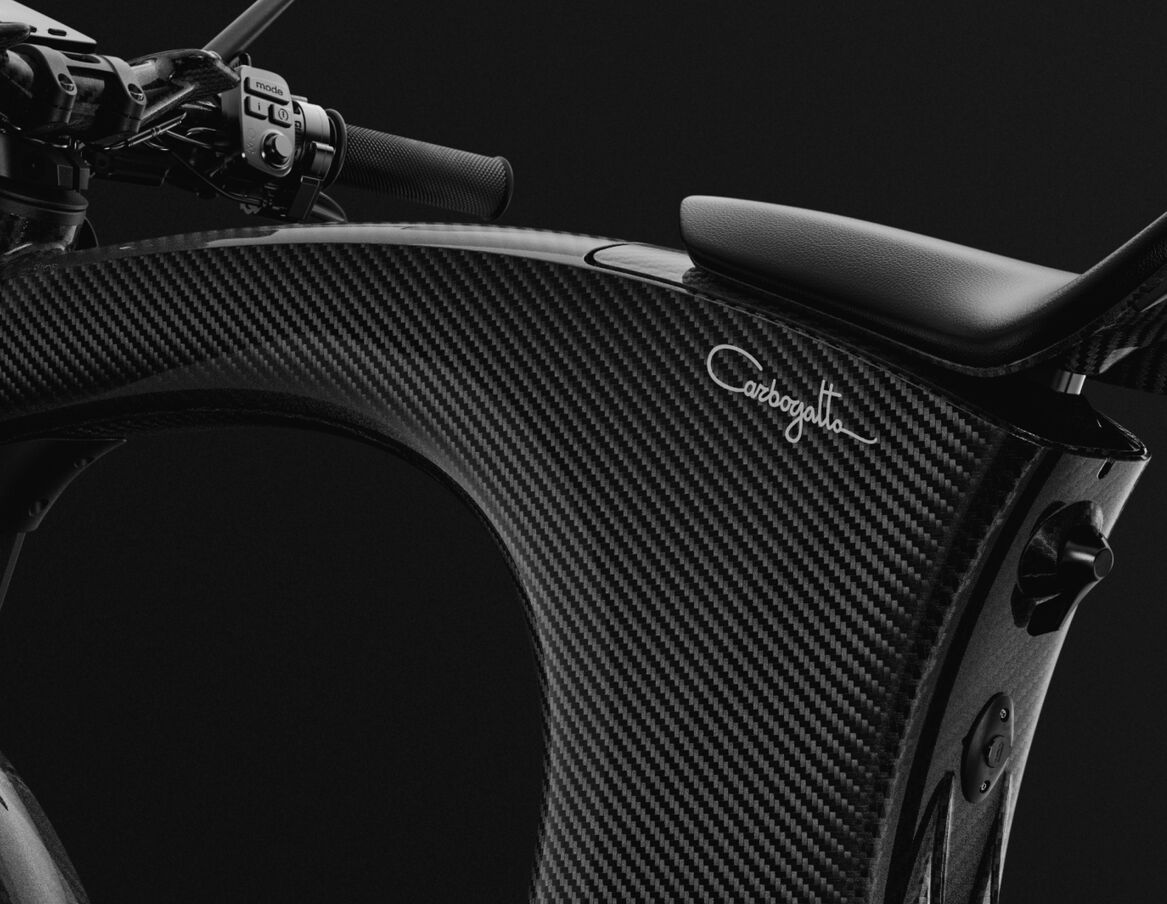

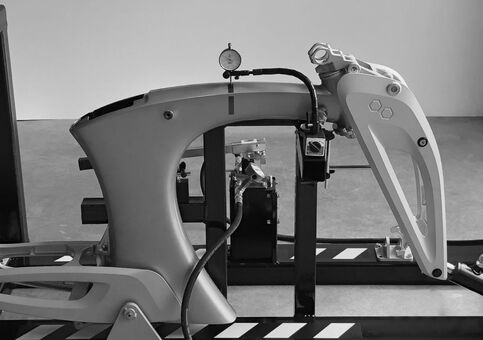

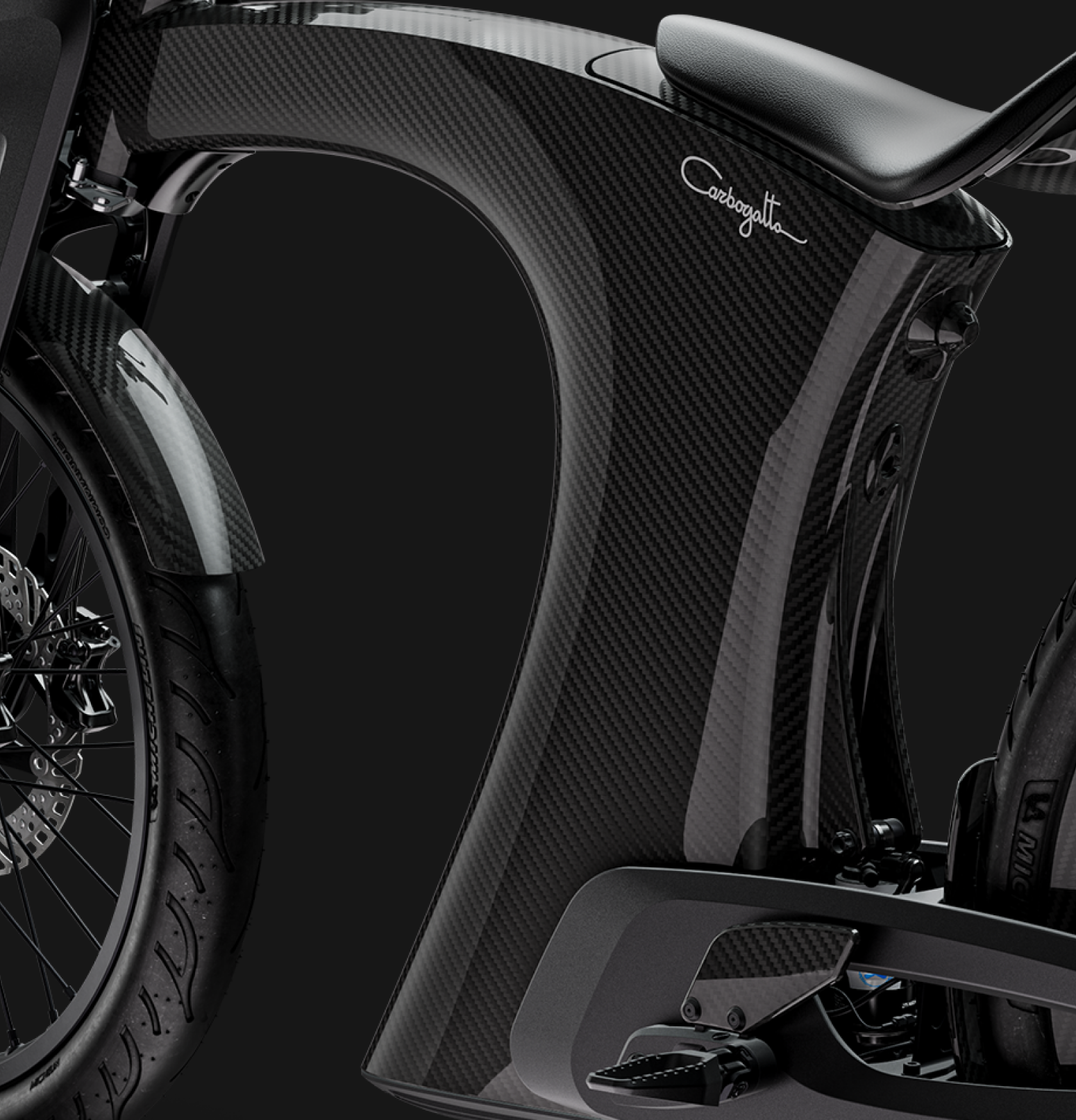

Carbonfiber Monocoque Frame

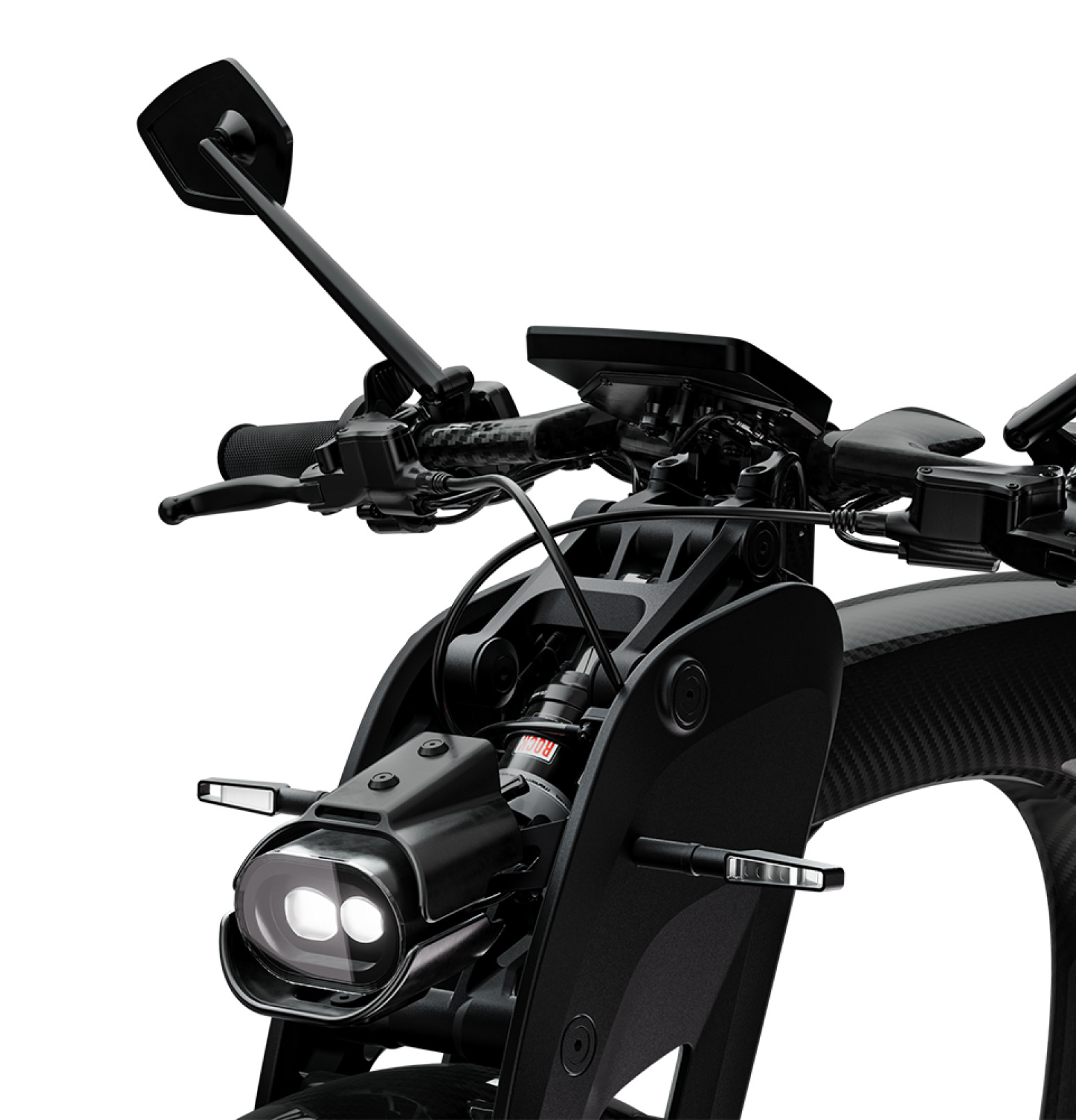

Premium Components
Fenders and Hagger
CNC Metal Parts and Finishing Anodizing

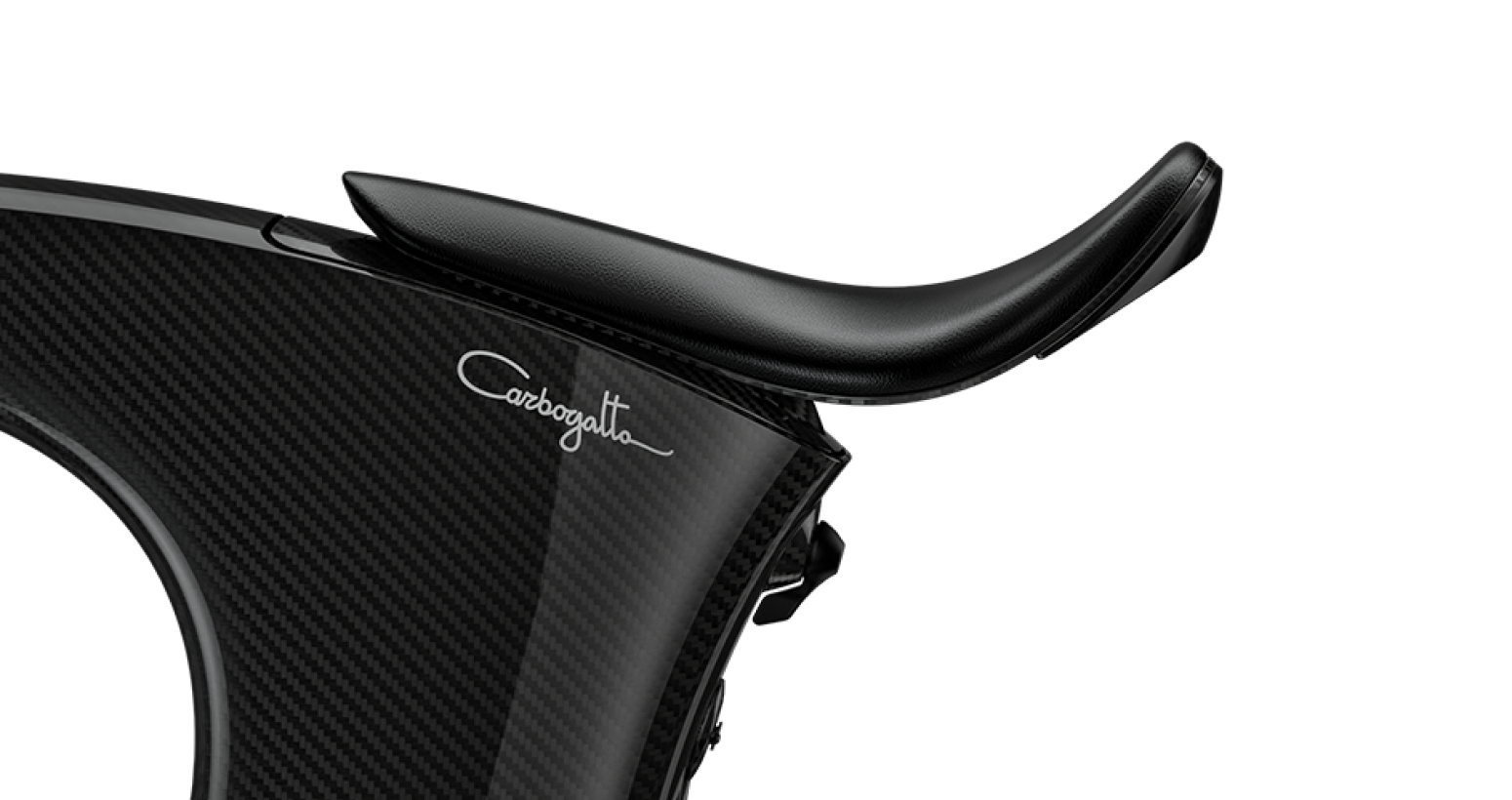

Saddle and Leather
Carbonfiber Handlebar
From concept to motorbike
Story of Carbogatto
From Concept to Motorbike is an unprecedented look at the journey of Carbogatto History. The process is long. It's challenging. And we're capturing it all. Explore our design philosophy. Each frame is handcrafted, from layering of carbon fiber to machining and finally painting

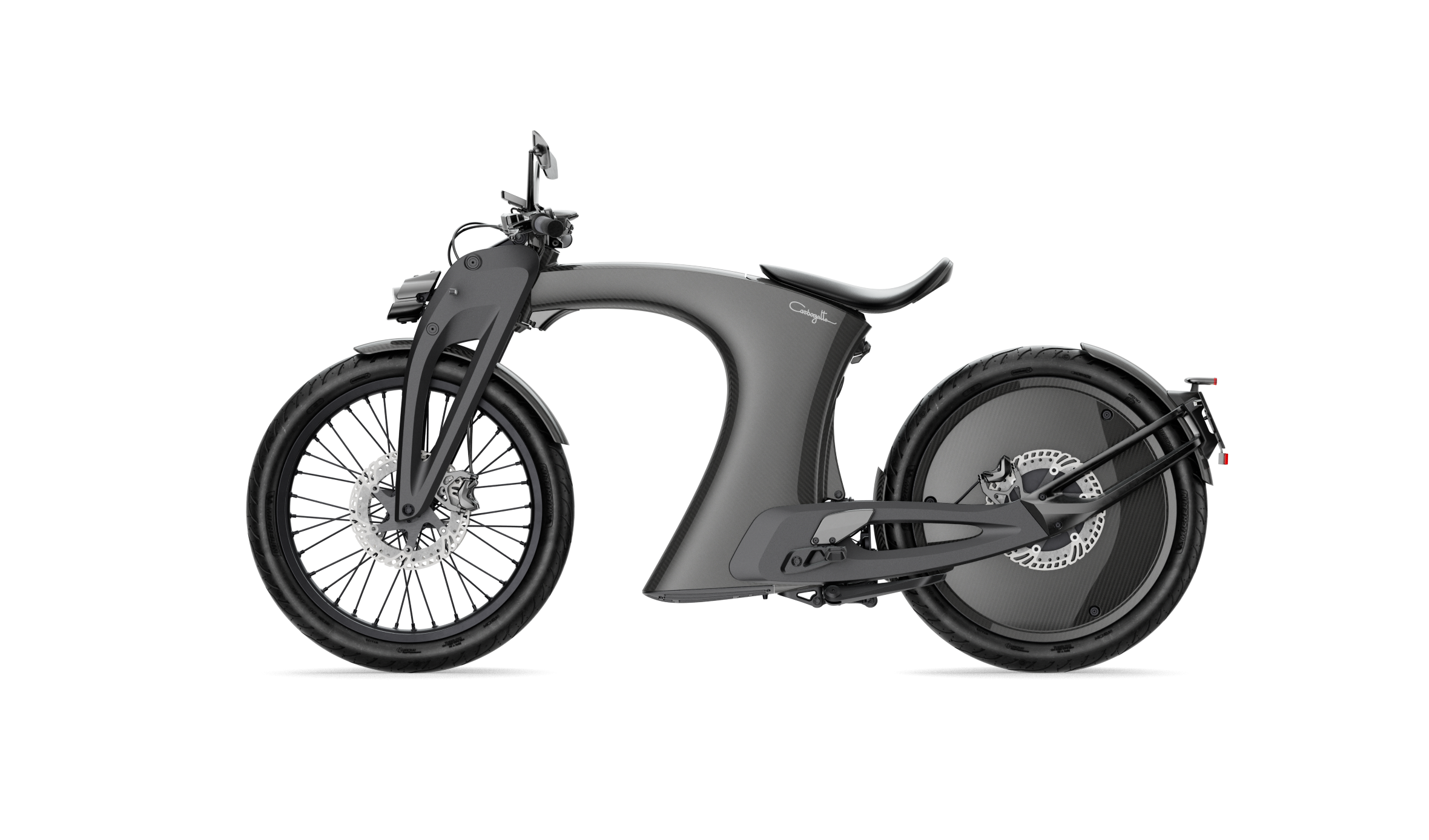

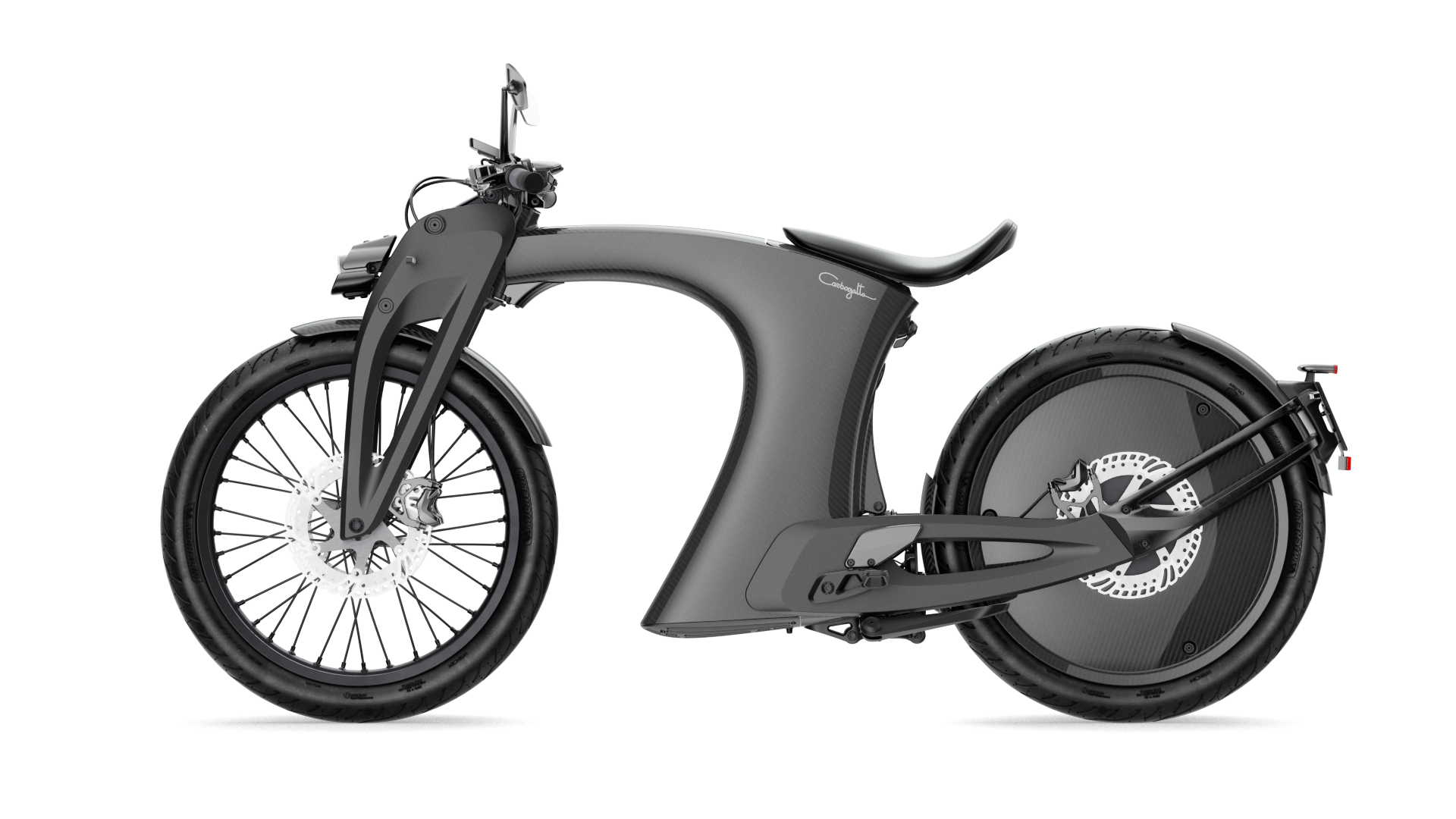

The art of balance
Redefining urban mobility
Inspired by classic cruiser bikes, equipped with the efficiency vital for everyday riding. Carbogatto LR features a girder-type front suspension and a progressive rear suspension, ensuring the perfect balance and comfort.

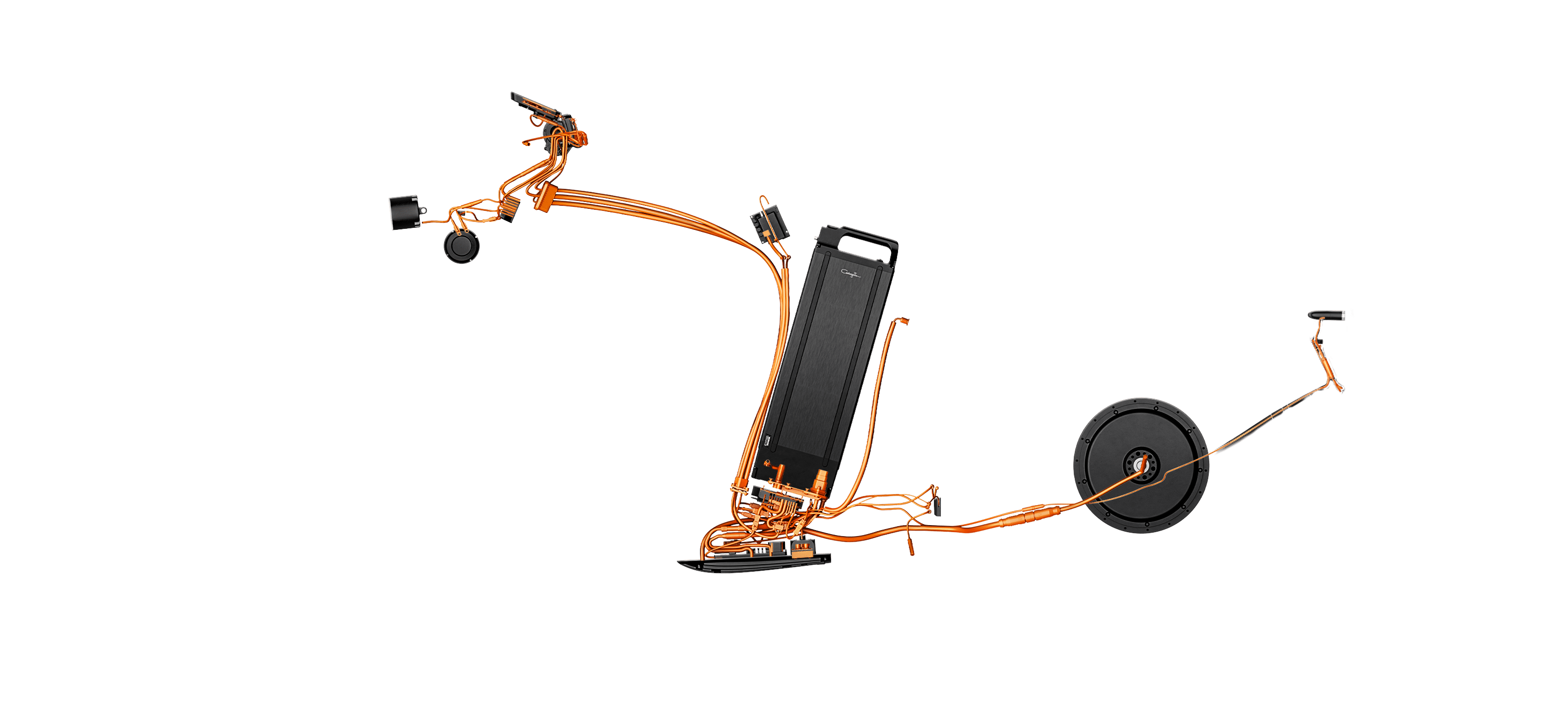

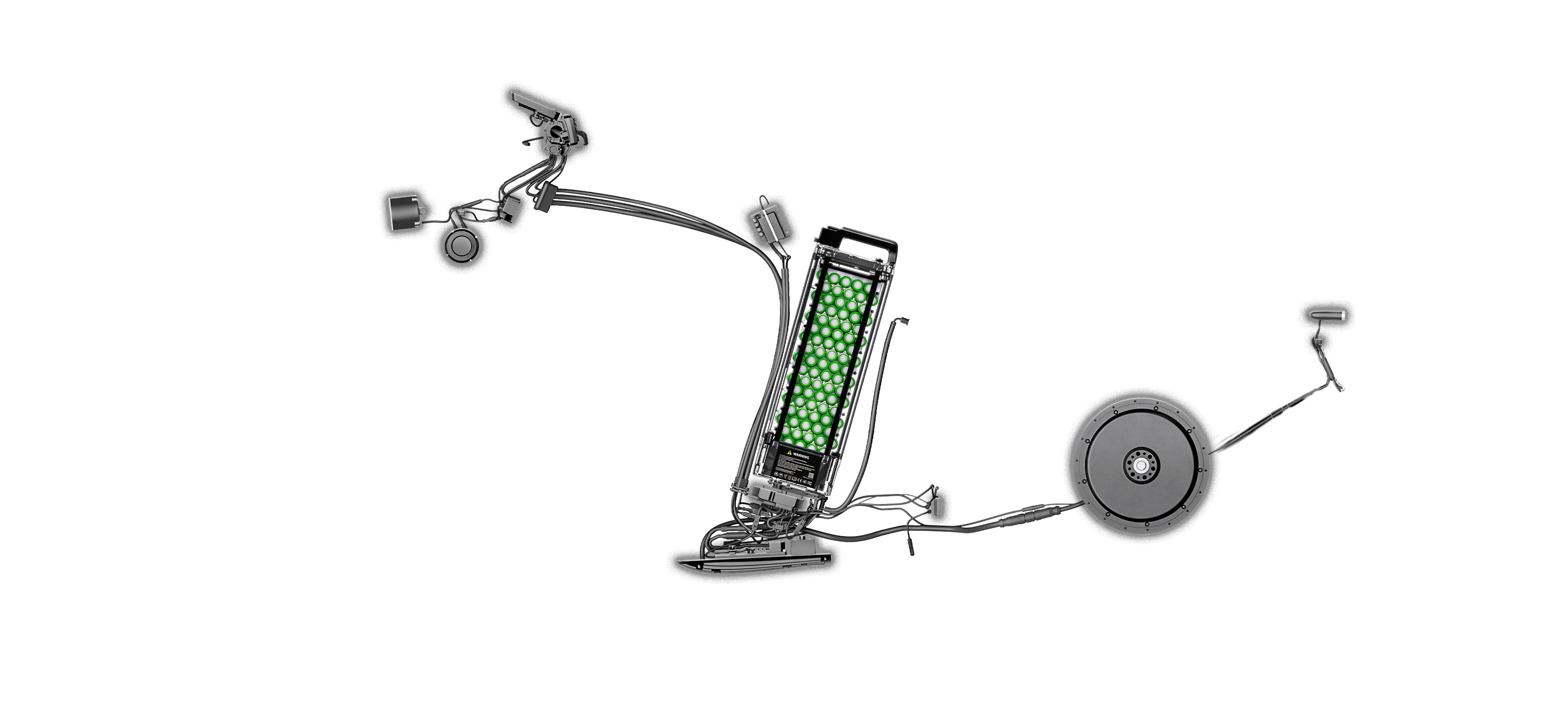

The anatomy of
Carbogatto LR
At the very core of Carbogatto LR, where innovation and precision converge, lies an intricate and complex inner ecosystem. The result is a testament to our unwavering pursuit of aesthetic perfection and engineering excellence.
Carbogatto highlights
Performance by design
Dimensions
Specifications
Overall dimensions and mass characteristics
- Dimensions
- 670×965×2065 mm*
- Wheelbase
- 1335 mm
- Clearance
- 145 mm
- Dimensions
- 670×965×2065 mm
- Wheelbase
- 1335 mm
- Clearance
- 145 mm

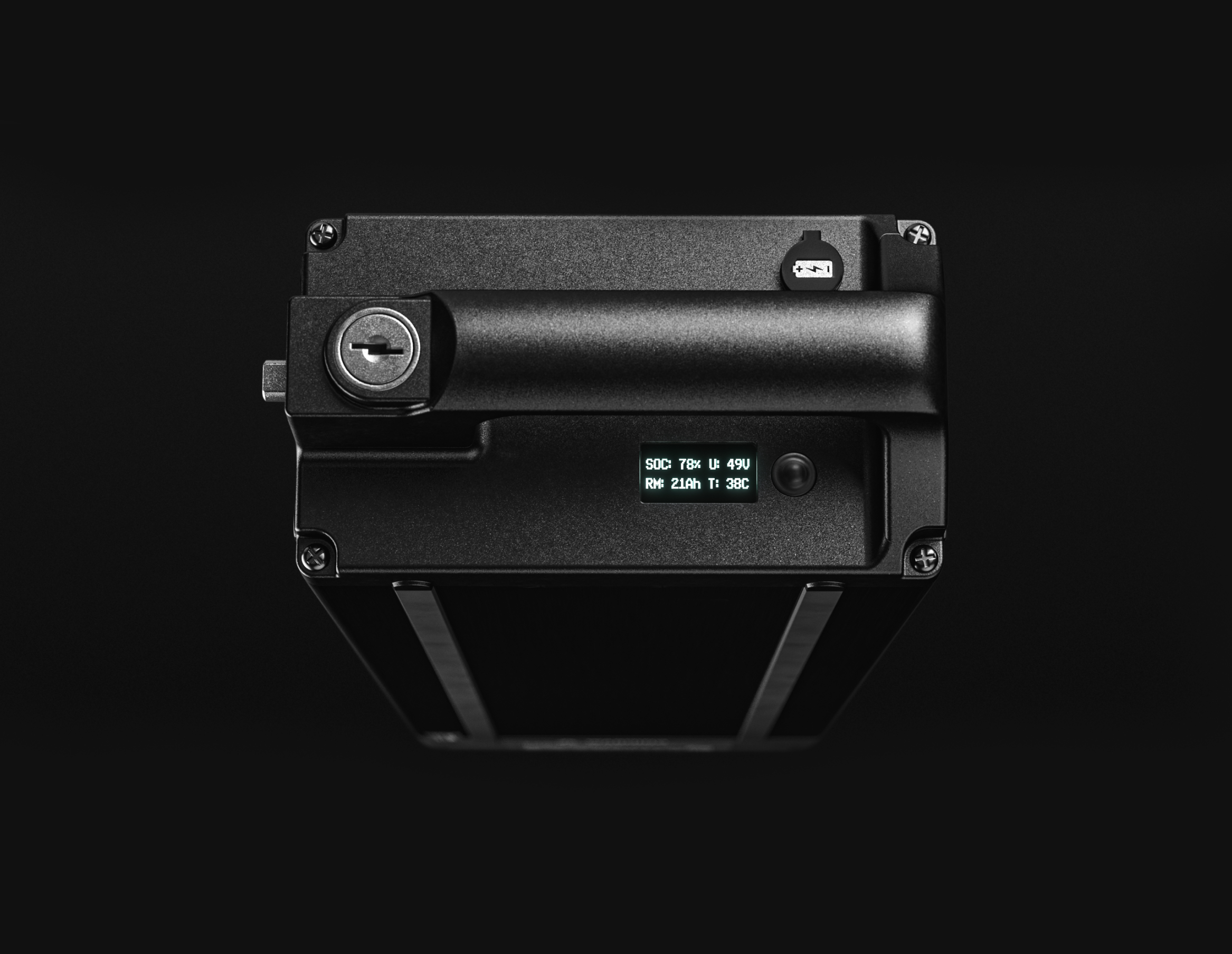

Battery
- Capacity
- 1150 W/h
- Number of charge cycles
- Up to ~ 1000 times
- Charge time in Supercharge mode
- Up to 80% – 40 min / up to 100% — 1.5 h
- Capacity
- 1150 W/h
- Number of charge cycles
- Up to ~ 1000 times
- Charge time in Supercharge mode
- Up to 80% – 40 min / up to 100% — 1.5 h
Direct Drive Engine
- Rated (continuous) power
- 670×965×2065 mm
- Torque
- 1335 mm
- Peak power
- 145 mm
- Rated (continuous) power
- 670×965×2065 mm
- Torque
- 1335 mm
- Peak power
- 145 mm
Chassis and brakes
- Rated (continuous) power
- 670×965×2065 mm
- Torque
- 1335 mm
- Peak power
- 145 mm
- Rated (continuous) power
- 670×965×2065 mm
- Torque
- 1335 mm
- Peak power
- 145 mm
Brake system
- Front Brakes Model
- Auriga Twin+ HD-E745
- Front Caliper
- 4 piston forged aluminum body
- Rear Brakes Model
- Auriga+ HD-E740
- Rear Caliper
- 4 piston forged aluminum body
- Pads
- 5mm pad - Q13RS Overall balanced resin pad Upload replacement
- Front brake disk diameter
- 254 mm
- Rear brake disk diameter
- 254 mm
Electric Motor
- Model
- MXUS XF40 customized housing for Carbogatto LR
- Voltage
- 48V
- Nominal Power
- 2 kW
- Peak power
- 3,5 kW
- Torque
- 80 N*m
- Rotor Speed
- 455 RPM
- Magnet Poles (2P)
- 23
- Recommended Operation Temperature
- -20C to 55C
- Temperature Sensor
- Yes
- Noise Grade
- ≤55 dB
- Weight
- 9,07 kg
- Waterproof resistance
- IP67
Regulatory
- Classification
- L1e-B (Street legal)
- Driver's license
- M1 category required
Anti-theft protection
- Mechanical anti-theft system
- Steering lock
- Unauthorized access alarms
- Sound signal and light indication (vibrations, wheel spinning, pressing controls)
- Additional protection functions via GPS module (optional)
- GPS Module Location tracking Remote locking Inclusion of all Plag&Play devices in the hijacking database

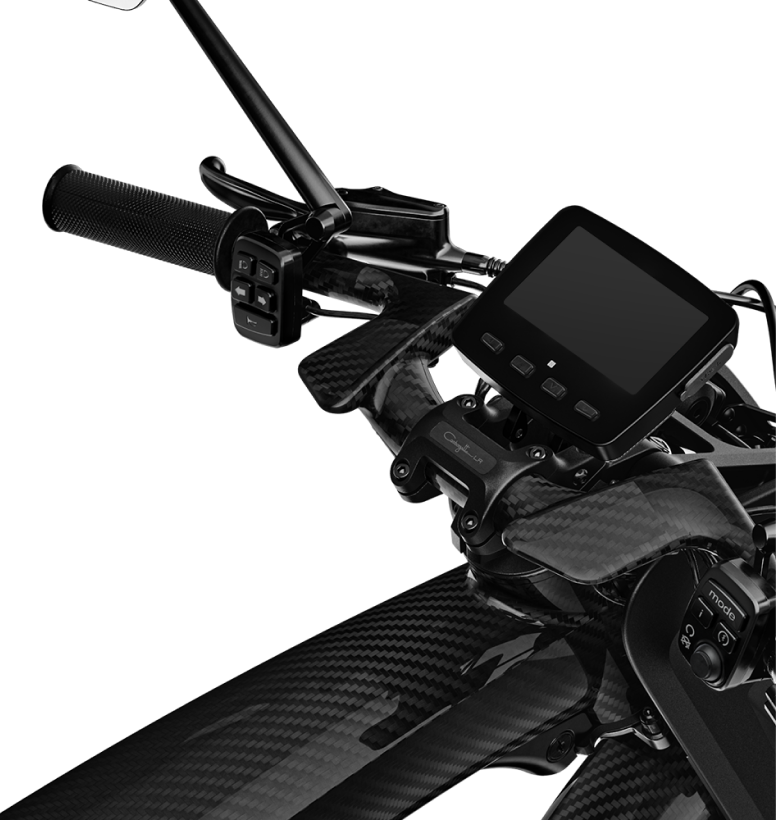

Dashboard
- Display
- Up to 16.7M colors
- Diagonal
- 4,3''
- Resolution
- 800x480
- Brightness
- 800 nit
- Interface
- RGB
- Light sensor
- Yes
- Number of Programmable control buttons
- 4
- NFC module
- Yes
- Bluetooth module
- Yes
- External port
- USB Type-C
- Light sensor
- Yes
- Waterproof resistance
- IP67
- Operation Temperature
- -20C to 70C
- Enclosure and HMI design
- By driveeco.engineering for Carbogatto
Mirrors
- Model
- mo.view race
- Arm strokes
- 180 mm
